Multi-Layer Perceptron for Classification

Training neural networks to classify synthetic data with decision boundaries.

neural-networks
optimization
models
Implements multi-layer perceptrons for classification tasks using PyTorch. Generates synthetic datasets and trains networks to learn non-linear decision boundaries, visualizing how MLPs separate classes in feature space.
Published

March 19, 2025

Classification using Multi-Layer Perceptrons

%matplotlib inline
import numpy as np
import scipy as sp
import matplotlib as mpl
import matplotlib.cm as cm
import matplotlib.pyplot as plt
import pandas as pd
pd.set_option('display.width', 500)
pd.set_option('display.max_columns', 100)
pd.set_option('display.notebook_repr_html', True)
import seaborn.apionly as sns
sns.set_context("poster")

Two additional imports here, seaborn and tqdm. Install via pip or conda

c0=sns.color_palette()[0]
c1=sns.color_palette()[1]
c2=sns.color_palette()[2]
from matplotlib.colors import ListedColormap
cmap_light = ListedColormap(['#FFAAAA', '#AAFFAA', '#AAAAFF'])
cmap_bold = ListedColormap(['#FF0000', '#00FF00', '#0000FF'])
cm = plt.cm.RdBu
cm_bright = ListedColormap(['#FF0000', '#0000FF'])

def points_plot(ax, Xtr, Xte, ytr, yte, clf_predict, colorscale=cmap_light, cdiscrete=cmap_bold, alpha=0.3, psize=20):
    h = .02
    X=np.concatenate((Xtr, Xte))
    x_min, x_max = X[:, 0].min() - .5, X[:, 0].max() + .5
    y_min, y_max = X[:, 1].min() - .5, X[:, 1].max() + .5
    xx, yy = np.meshgrid(np.linspace(x_min, x_max, 100),
                         np.linspace(y_min, y_max, 100))


    Z = clf_predict(np.c_[xx.ravel(), yy.ravel()])
    ZZ = Z.reshape(xx.shape)
    plt.pcolormesh(xx, yy, ZZ, cmap=cmap_light, alpha=alpha, axes=ax)
    showtr = ytr
    showte = yte
    ax.scatter(Xtr[:, 0], Xtr[:, 1], c=showtr-1, cmap=cmap_bold, s=psize, alpha=alpha,edgecolor="k")
    # and testing points
    ax.scatter(Xte[:, 0], Xte[:, 1], c=showte-1, cmap=cmap_bold, alpha=alpha, marker="s", s=psize+10)
    ax.set_xlim(xx.min(), xx.max())
    ax.set_ylim(yy.min(), yy.max())
    return ax,xx,yy

Create some noisy moon shaped data

In order to illustrate classification by a MLP, we first create some noisy moon shaped data. The noise level here and the amount of data is the first thing you might want to experiment with to understand the interplay of amount of data, noise level, number of parameters in the model we use to fit, and overfitting as illustrated by jagged boundaries.

We standardize the data so that it is distributed about 0 as well

from sklearn.datasets import make_moons
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
dataX, datay = make_moons(noise=0.35, n_samples=400)
dataX = StandardScaler().fit_transform(dataX)
X_train, X_test, y_train, y_test = train_test_split(dataX, datay, test_size=.4)
h=.02
x_min, x_max = dataX[:, 0].min() - .5, dataX[:, 0].max() + .5
y_min, y_max = dataX[:, 1].min() - .5, dataX[:, 1].max() + .5
xx, yy = np.meshgrid(np.arange(x_min, x_max, h),
                     np.arange(y_min, y_max, h))

# just plot the dataset first
cm = plt.cm.RdBu
cm_bright = ListedColormap(['#FF0000', '#0000FF'])
ax = plt.gca()
# Plot the training points
ax.scatter(X_train[:, 0], X_train[:, 1], c=y_train, cmap=cm_bright, alpha=0.5, s=30)
# and testing points
ax.scatter(X_test[:, 0], X_test[:, 1], c=y_test, cmap=cm_bright, alpha=0.5, s=30)
ax.set_xlim(xx.min(), xx.max())
ax.set_ylim(yy.min(), yy.max())

import torch
import torch.nn as nn
from torch.nn import functional as fn
from torch.autograd import Variable
import torch.utils.data

Writing a Multi-Layer Perceptron class

We wrap the construction of our network

class MLP(nn.Module):
    def __init__(self, input_dim, hidden_dim, output_dim, nonlinearity = fn.tanh, additional_hidden_wide=0):
        super(MLP, self).__init__()
        self.fc_initial = nn.Linear(input_dim, hidden_dim)
        self.fc_mid = nn.ModuleList()
        self.additional_hidden_wide = additional_hidden_wide
        for i in range(self.additional_hidden_wide):
            self.fc_mid.append(nn.Linear(hidden_dim, hidden_dim))
        if self.additional_hidden_wide != -1:
            self.fc_final = nn.Linear(hidden_dim, output_dim)
        self.nonlinearity = nonlinearity

    def forward(self, x):
        x = self.fc_initial(x)
        x = self.nonlinearity(x)
        if self.additional_hidden_wide != -1:
            for i in range(self.additional_hidden_wide):
                x = self.fc_mid[i](x)
                x = self.nonlinearity(x)
            x = self.fc_final(x)
        return x

We use it to train. Notice the double->float casting. Numpy defautlts to double but torch defaulta to float to enable memory efficient GPU usage.

np.dtype(np.float).itemsize, np.dtype(np.double).itemsize
(8, 8)

But torch floats are 4 byte as can be seen from here: http://pytorch.org/docs/master/tensors.html

Training the model

Points to note:

  • printing a model prints its layers, handy. Note that we implemented layers as functions. The autodiff graph is constructed on the fly on the first forward pass and used in backward.
  • we had to cast to float
  • model.parameters gives us params, model.named_parameters() gives us assigned names. You can set your own names when you create a layer
  • we create an iterator over the data, more precisely over batches by doing iter(loader). This dispatches to the __iter__ method of the dataloader. (see https://github.com/pytorch/pytorch/blob/4157562c37c76902c79e7eca275951f3a4b1ef78/torch/utils/data/dataloader.py#L416) Always explore source code to understand what is going on
model2 = MLP(input_dim=2, hidden_dim=3, output_dim=2, nonlinearity=fn.tanh, additional_hidden_wide=1)
print(model2)
criterion = nn.CrossEntropyLoss(size_average=True)
dataset = torch.utils.data.TensorDataset(torch.from_numpy(X_train), torch.from_numpy(y_train))
loader = torch.utils.data.DataLoader(dataset, batch_size=64, shuffle=True)
lr, epochs, batch_size = 1e-1 , 1000 , 64
optimizer = torch.optim.SGD(model2.parameters(), lr = lr )
accum=[]
for k in range(epochs):
    localaccum = []
    for localx, localy in iter(loader):
        localx = Variable(localx.float())
        localy = Variable(localy.long())
        output = model2.forward(localx)
        loss = criterion(output, localy)
        model2.zero_grad()
        loss.backward()
        optimizer.step()
        localaccum.append(loss.data[0])
    accum.append(np.mean(localaccum))

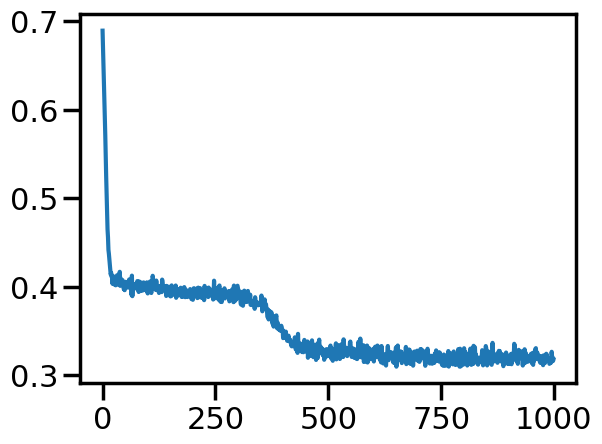

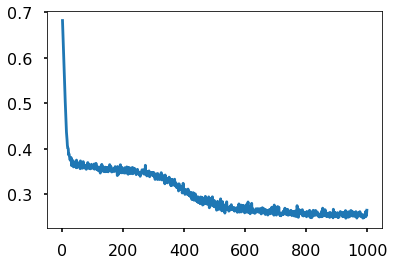

plt.plot(accum);
MLP(
  (fc_initial): Linear(in_features=2, out_features=3)
  (fc_mid): ModuleList(
    (0): Linear(in_features=3, out_features=3)
  )
  (fc_final): Linear(in_features=3, out_features=2)
)

The out put from the foward pass is run on the entire test set. Since pytorch tracks layers upto but before the loss, this handily gives us the softmax output, which we can then use np.argmax on.

testoutput = model2.forward(Variable(torch.from_numpy(X_test).float()))
testoutput
Variable containing:
-1.3997  1.1056
 0.4321 -0.1878
 0.2325 -0.0586
-1.4748  1.1468
 3.1649 -2.2684
 2.9101 -2.0822
 1.1887 -0.7474
 1.4796 -1.0149
-3.5469  2.5426
-3.7733  2.6948
-0.2148  0.2858
 3.9723 -2.8604
-1.9199  1.4439
 0.3520 -0.1263
 3.3732 -2.4237
 2.5095 -1.7848
 2.8704 -2.0525
-1.8319  1.3913
-0.0806  0.1818
-0.3542  0.3635
-0.7936  0.6824
-0.0041  0.1306
 2.1060 -1.4357
 0.2766 -0.1130
 0.8709 -0.5103
-1.3461  1.0524
 3.3596 -2.4143
-0.7062  0.6287
 1.5634 -1.0407
-0.0492  0.1600
 0.0524  0.0948
 1.8808 -1.3182
-3.4808  2.4987
-1.9241  1.4596
 2.3021 -1.5925
-0.7218  0.6272
-3.6070  2.5861
-3.5477  2.5420
-2.4397  1.7995
-1.6359  1.2494
 0.9166 -0.5441
-2.9952  2.1791
-0.9801  0.8223
-1.1452  0.9344
 0.1102  0.0475
-3.6323  2.6063
-2.7851  2.0277
-3.1108  2.2546
-0.5392  0.5021
-0.8784  0.7372
-3.9028  2.7874
 2.6638 -1.8992
-3.0897  2.2326
 2.7642 -1.9722
-2.2850  1.6921
-1.7232  1.3218
 4.2042 -3.0399
 1.5363 -1.0084
 1.0733 -0.6613
 4.3506 -3.1474
-0.8530  0.7152
 4.2824 -3.0974
-0.0404  0.1513
 0.1457 -0.0290
-0.9239  0.7579
-1.3236  1.0476
-2.5510  1.8800
 1.2802 -0.8159
-3.4907  2.5036
-0.2133  0.2611
 1.7668 -1.1816
 3.1958 -2.2577
-0.7845  0.6720
-2.2681  1.6901
-3.7748  2.6956
 2.9403 -2.0981
 1.5907 -1.0496
 1.3040 -0.8349
 0.1481  0.0123
 0.8719 -0.5111
-0.3822  0.4076
-1.1132  0.8936
 1.1114 -0.6897
 0.0516  0.0699
-1.0205  0.8473
-0.9822  0.8226
-1.4213  1.1121
 1.3364 -0.8580
-1.7266  1.3185
 1.8002 -1.2186
-1.1045  0.8875
 0.3044 -0.0899
-1.6213  1.2412
-0.3257  0.3136
-0.6594  0.5660
-0.0061  0.1307
-0.0723  0.1303
 2.2622 -1.5531
 0.6425 -0.3400
 3.5527 -2.5243
 1.4703 -0.9585
 0.4742 -0.2152
-3.9635  2.8235
-2.0605  1.5491
-3.7193  2.6581
 1.3573 -0.9252
 2.8911 -2.0675
-2.6437  1.9390
-0.7654  0.6714
 1.1626 -0.7502
 0.3224 -0.1071
-2.2417  1.6723
 0.5332 -0.3175
 0.6907 -0.3770
 0.0929  0.0572
 2.2506 -1.5903
-2.1372  1.5943
 2.4597 -1.7284
-0.9419  0.7867
 1.3708 -0.8835
 0.4274 -0.1803
-1.8787  1.4144
-2.8720  2.0867
-3.2267  2.3252
 3.5142 -2.5284
 0.5442 -0.2674
-1.0442  0.8467
 0.2991 -0.0894
-0.5332  0.4947
-1.9302  1.4491
-0.3737  0.4014
-0.2904  0.3255
-3.1304  2.2694
 0.2306 -0.0791
-3.0481  2.2154
 0.7065 -0.4357
 0.0990  0.0610
-1.1890  0.9566
 0.2239 -0.0386
 3.4539 -2.4829
-0.2503  0.3136
-3.7716  2.6952
-3.8336  2.7356
-0.5169  0.4874
 3.9846 -2.8736
-2.4657  1.8112
-1.8777  1.4178
-1.7955  1.3672
-0.2697  0.3276
 2.2395 -1.5380
-2.7763  2.0324
 0.3578 -0.1327
 0.0418  0.0952
 1.6378 -1.0839
 1.5454 -1.0322
-3.6984  2.6439
 0.4830 -0.2253
-0.1812  0.2496
 0.9076 -0.5379
-3.3711  2.4227
[torch.FloatTensor of size 160x2]
y_pred = testoutput.data.numpy().argmax(axis=1)
y_pred
array([1, 0, 0, 1, 0, 0, 0, 0, 1, 1, 1, 0, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0,
       0, 0, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1,
       1, 1, 1, 1, 1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 1, 1, 1, 0, 1,
       1, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0,
       1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0,
       0, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 1, 0, 0, 1,
       0, 0, 1, 1, 1, 1, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1])

You can write your own but we import some metrics from sklearn

from sklearn.metrics import confusion_matrix, accuracy_score
confusion_matrix(y_test, y_pred)
array([[66, 16],
       [ 5, 73]])
accuracy_score(y_test, y_pred)
0.86875000000000002

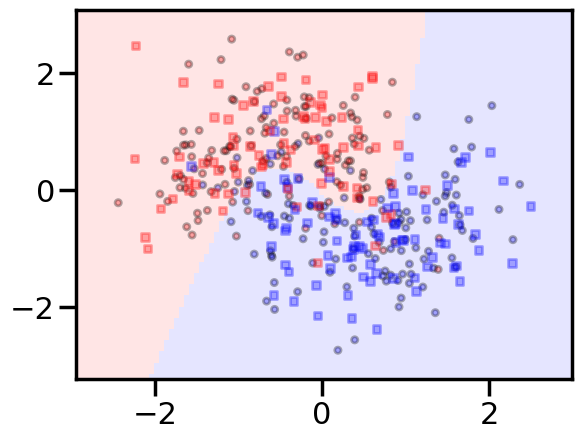

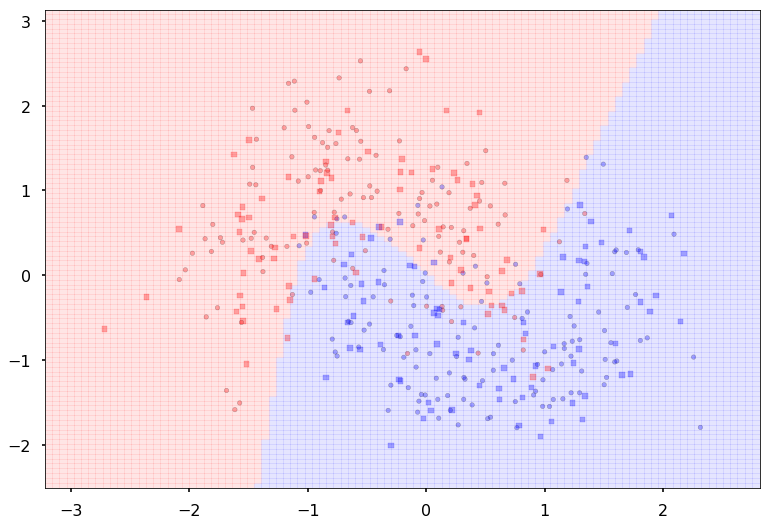

We can wrap this machinery in a function, and pass this function to points_plot to predict on a grid and thus give us a boundary viz

def make_pred(X_set):
    output = model2.forward(Variable(torch.from_numpy(X_set).float()))
    return output.data.numpy().argmax(axis=1)
with sns.plotting_context('poster'):
    ax = plt.gca()
    points_plot(ax, X_train, X_test, y_train, y_test, make_pred);

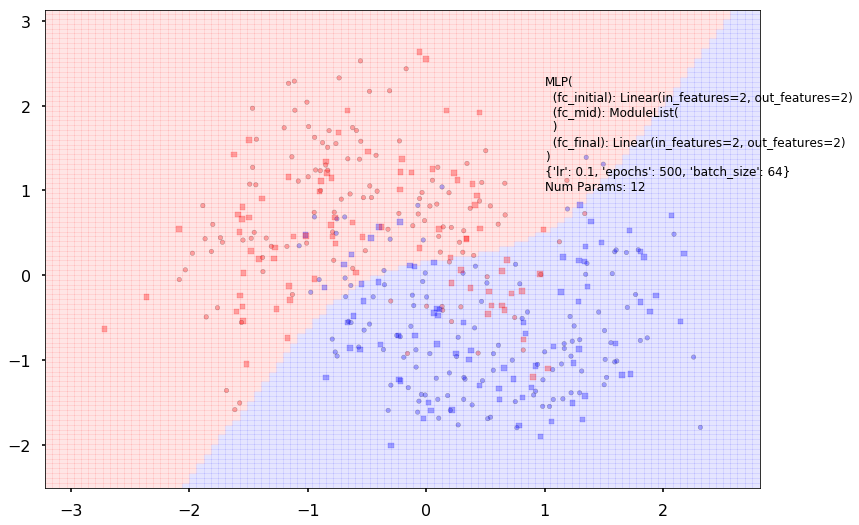

Making a scikit-learn like interface

Since we want to run many experiments, we’ll go ahead and wrap our fitting process in a sklearn style interface. Another example of such an interface is here

from tqdm import tnrange, tqdm_notebook
class MLPClassifier:

    def __init__(self, input_dim, hidden_dim,
                 output_dim, nonlinearity = fn.tanh,
                 additional_hidden_wide=0):
        self._pytorch_model = MLP(input_dim, hidden_dim, output_dim, nonlinearity, additional_hidden_wide)
        self._criterion = nn.CrossEntropyLoss(size_average=True)
        self._fit_params = dict(lr=0.1, epochs=200, batch_size=64)
        self._optim = torch.optim.SGD(self._pytorch_model.parameters(), lr = self._fit_params['lr'] )

    def __repr__(self):
        num=0
        for k, p in self._pytorch_model.named_parameters():
            numlist = list(p.data.numpy().shape)
            if len(numlist)==2:
                num += numlist[0]*numlist[1]
            else:
                num+= numlist[0]
        return repr(self._pytorch_model)+"\n"+repr(self._fit_params)+"\nNum Params: {}".format(num)

    def set_fit_params(self, *, lr=0.1, epochs=200, batch_size=64):
        self._fit_params['batch_size'] = batch_size
        self._fit_params['epochs'] = epochs
        self._fit_params['lr'] = lr
        self._optim = torch.optim.SGD(self._pytorch_model.parameters(), lr = self._fit_params['lr'] )

    def fit(self, X_train, y_train):
        dataset = torch.utils.data.TensorDataset(torch.from_numpy(X_train), torch.from_numpy(y_train))
        loader = torch.utils.data.DataLoader(dataset, batch_size=self._fit_params['batch_size'], shuffle=True)
        self._accum=[]
        for k in tnrange(self._fit_params['epochs']):
            localaccum = []
            for localx, localy in iter(loader):
                localx = Variable(localx.float())
                localy = Variable(localy.long())
                output = self._pytorch_model.forward(localx)
                loss = self._criterion(output, localy)
                self._pytorch_model.zero_grad()
                loss.backward()
                self._optim.step()
                localaccum.append(loss.data[0])
            self._accum.append(np.mean(localaccum))

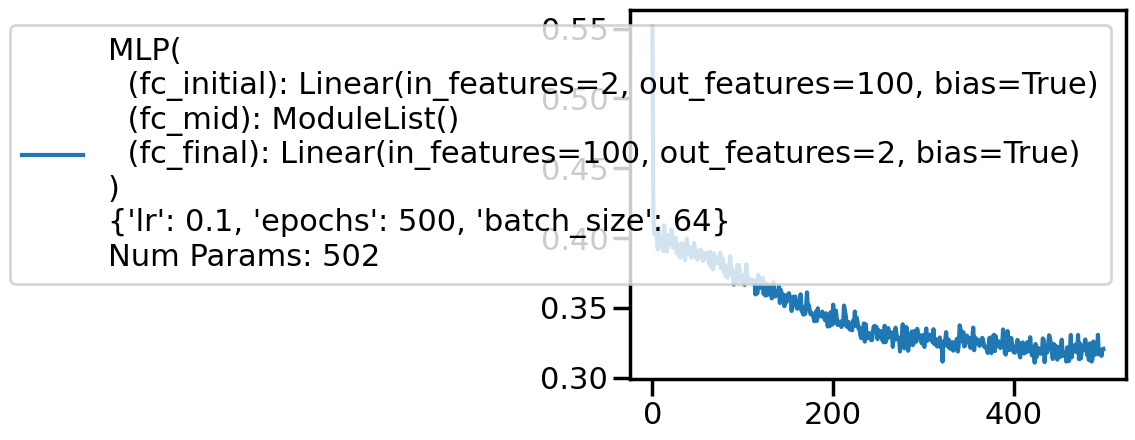

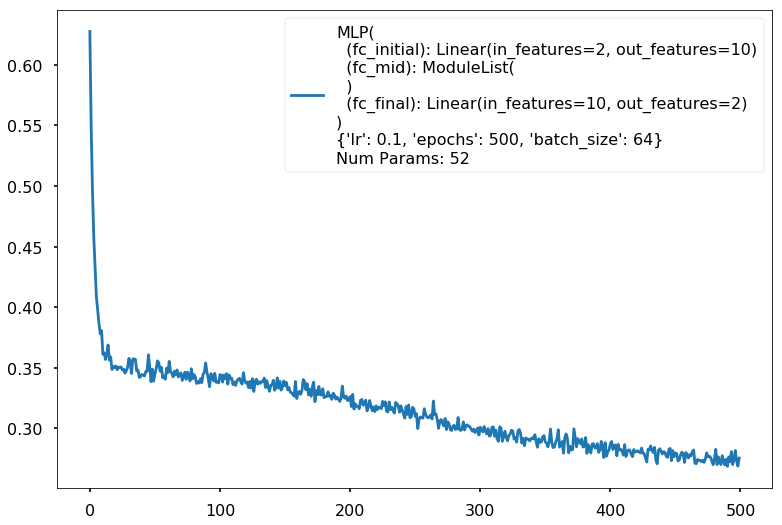

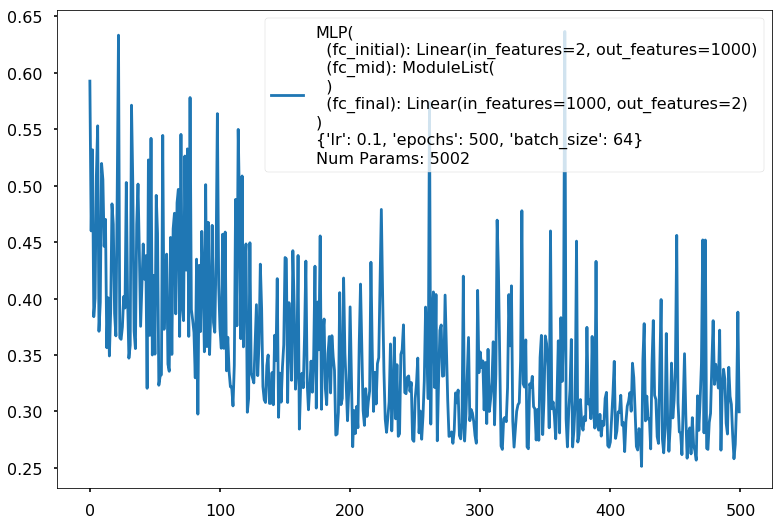

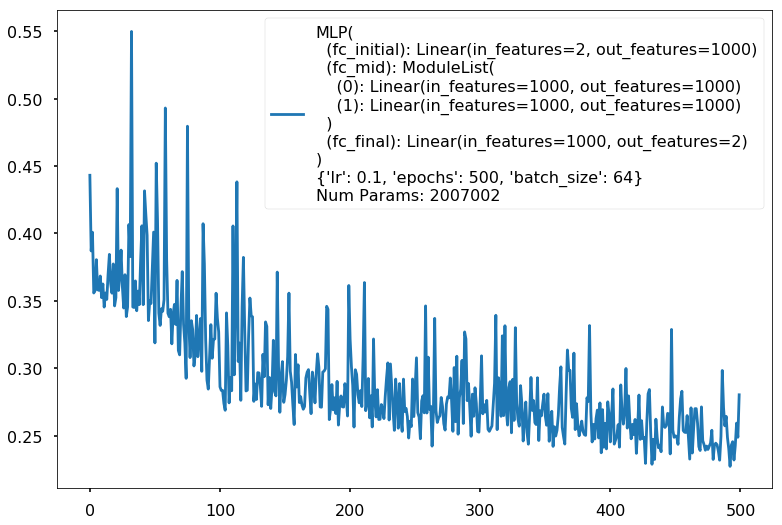

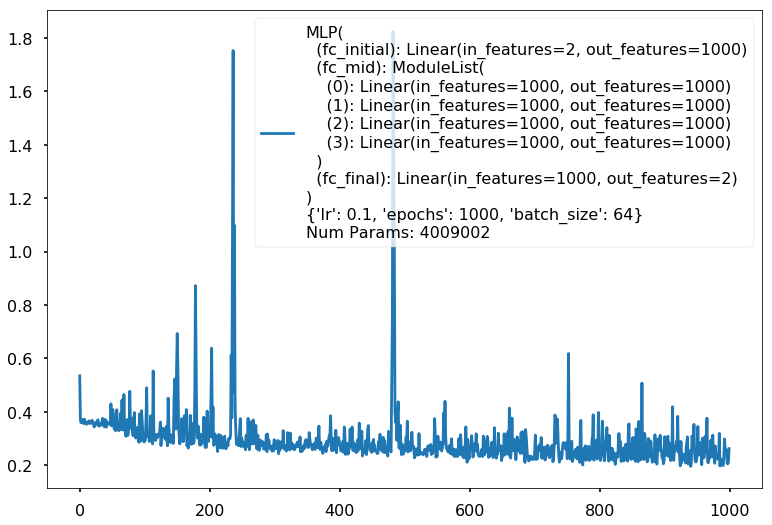

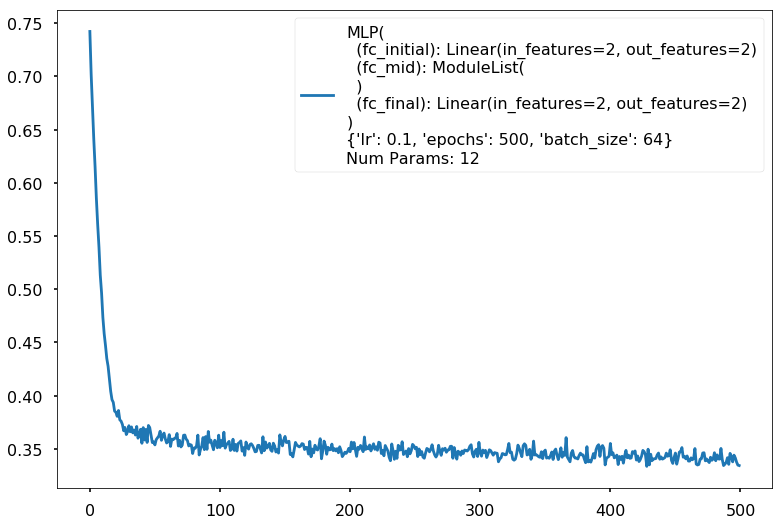

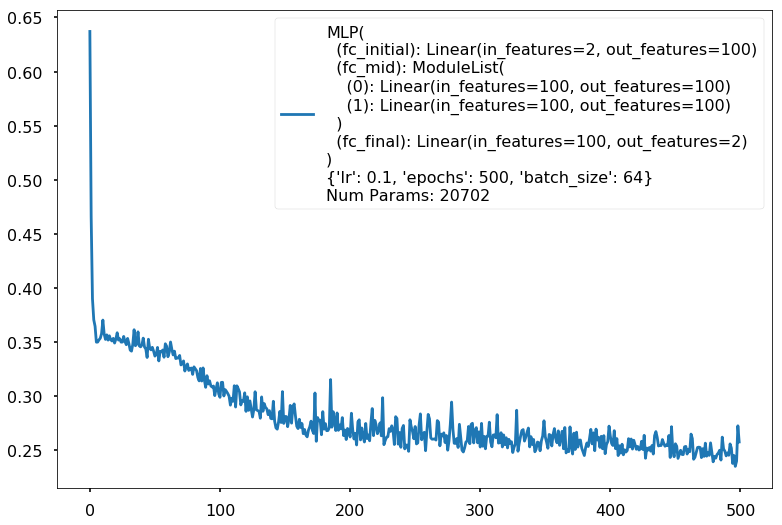

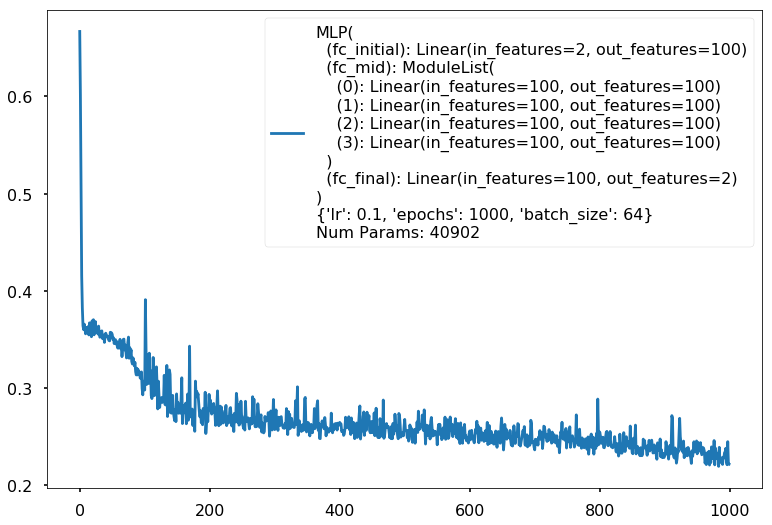

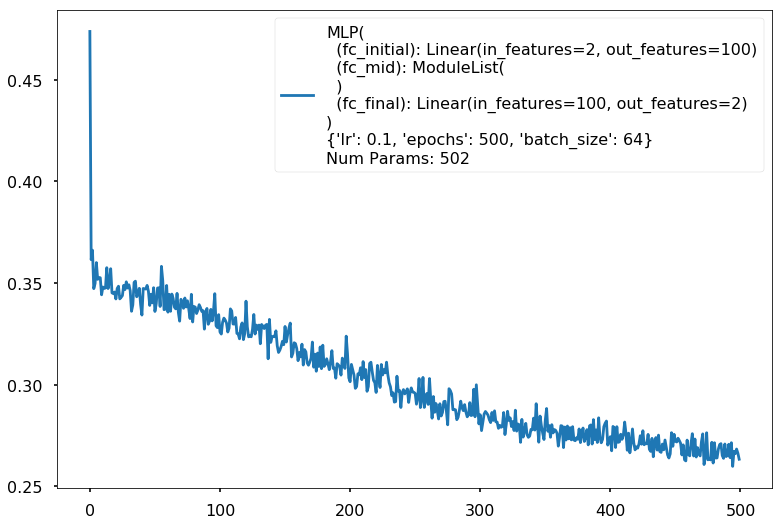

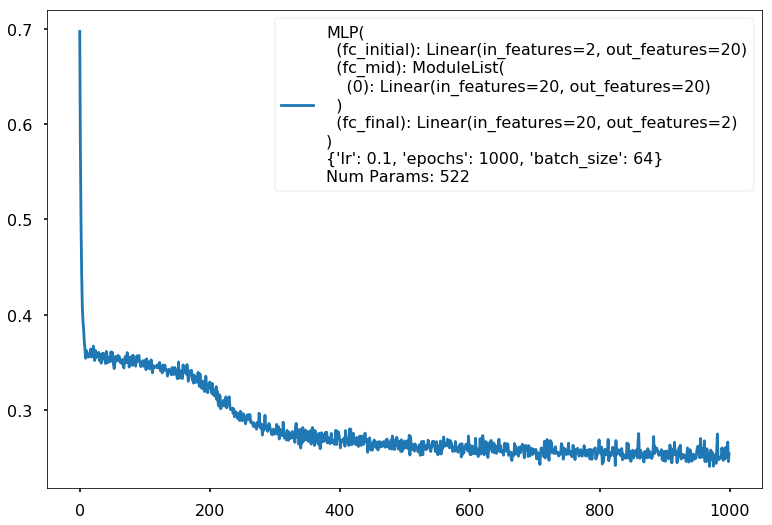

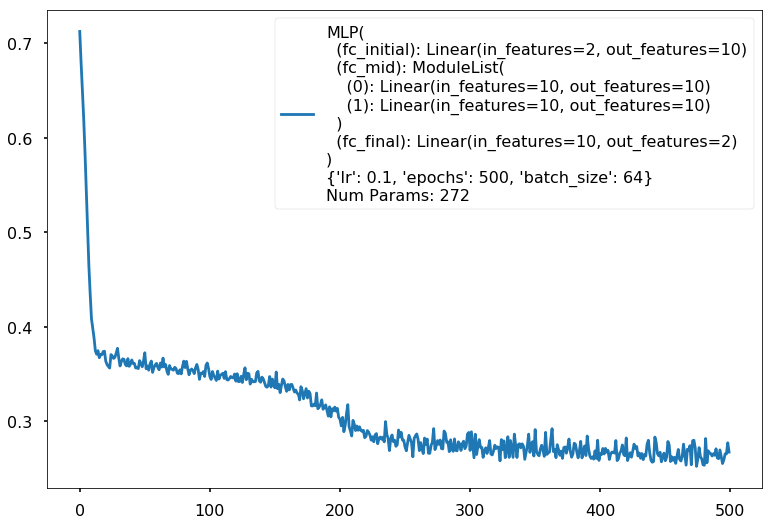

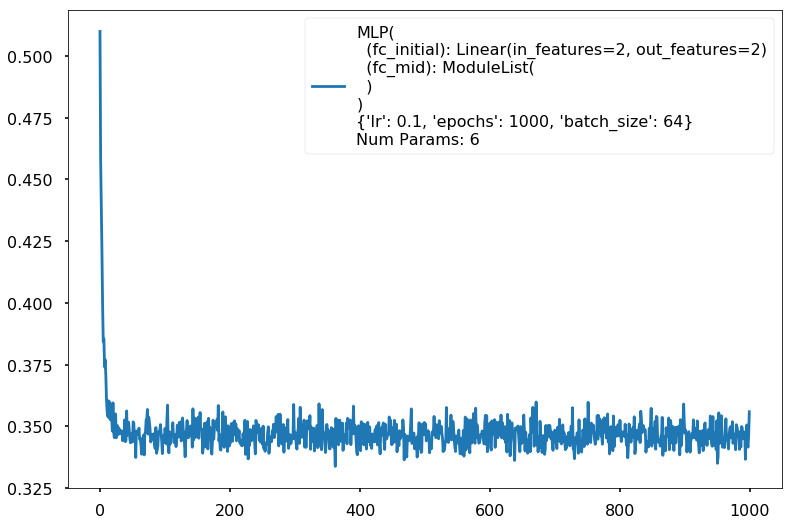

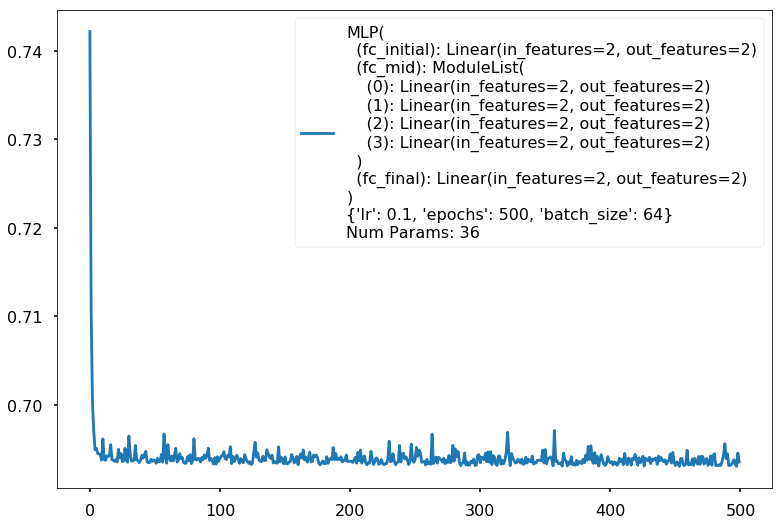

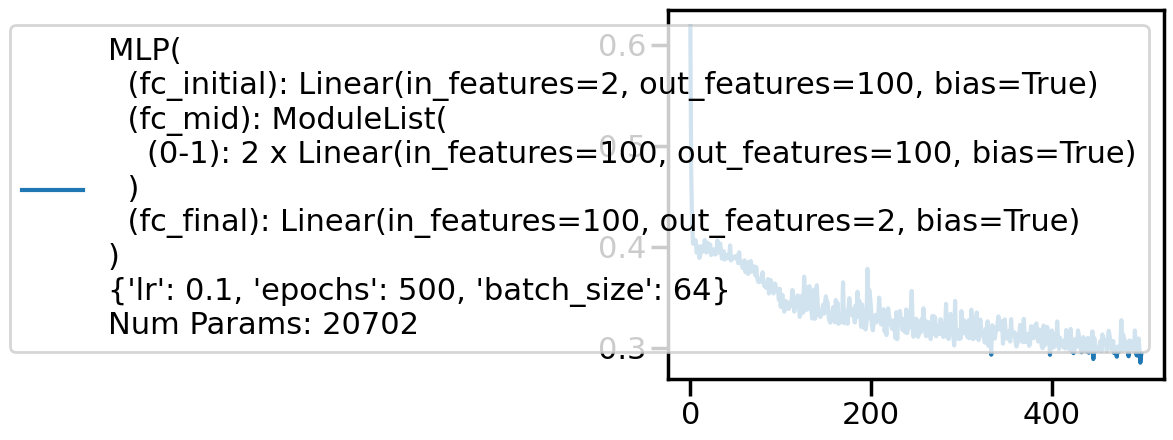

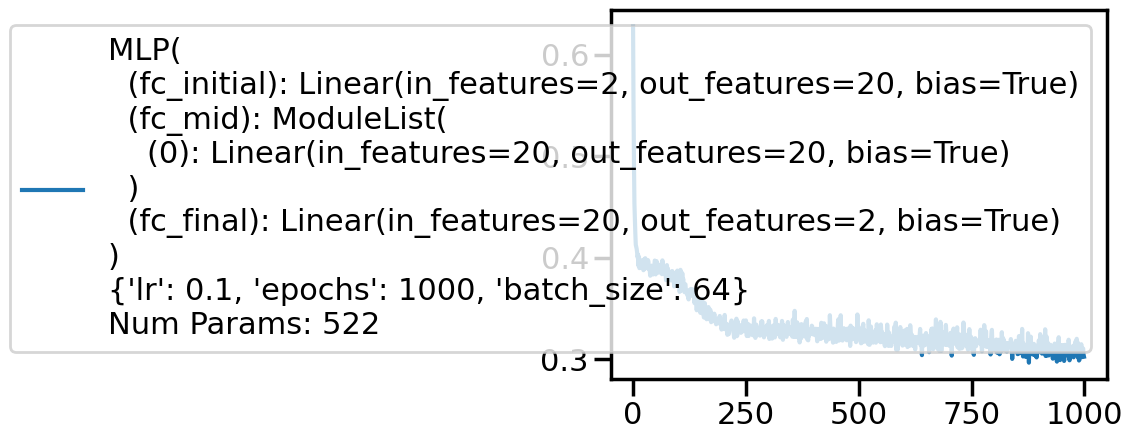

    def plot_loss(self):
        plt.plot(self._accum, label="{}".format(self))
        plt.legend()
        plt.show()

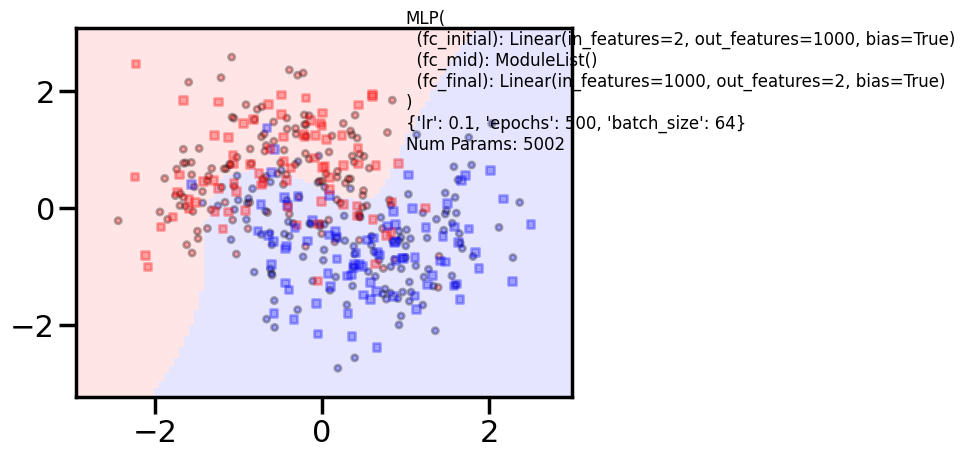

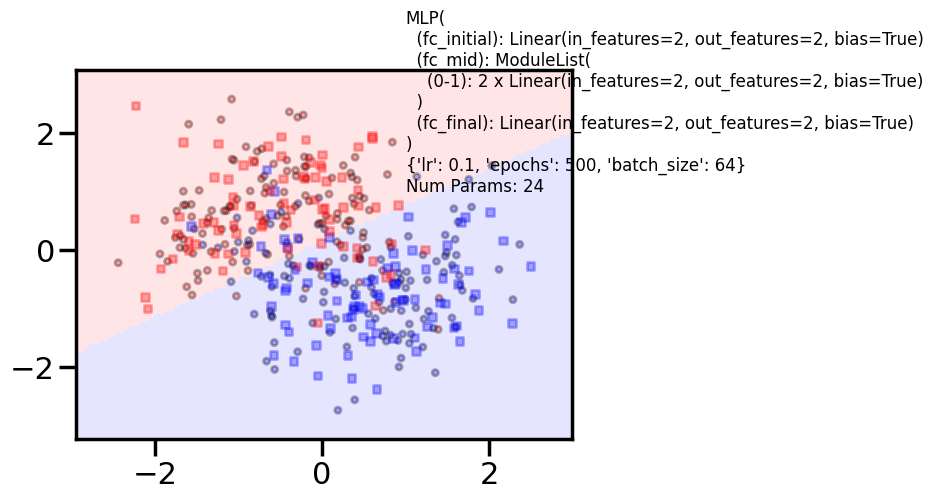

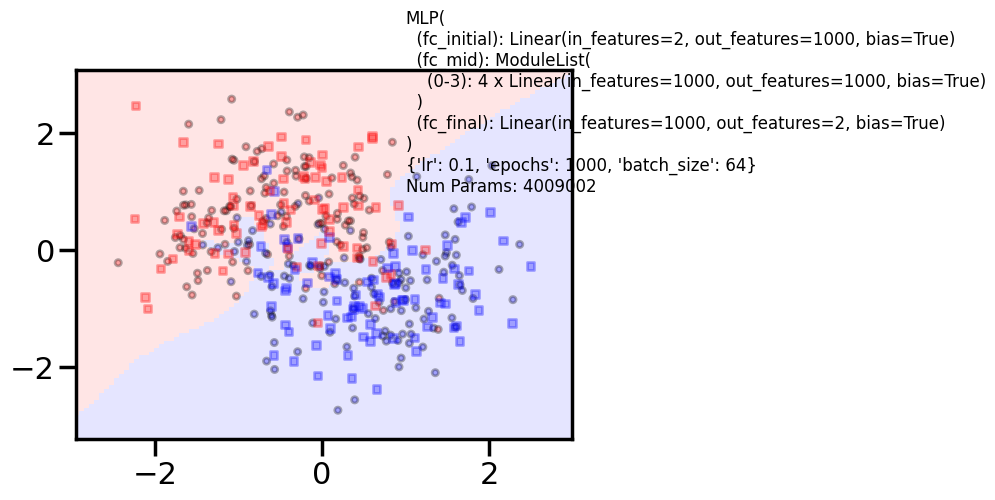

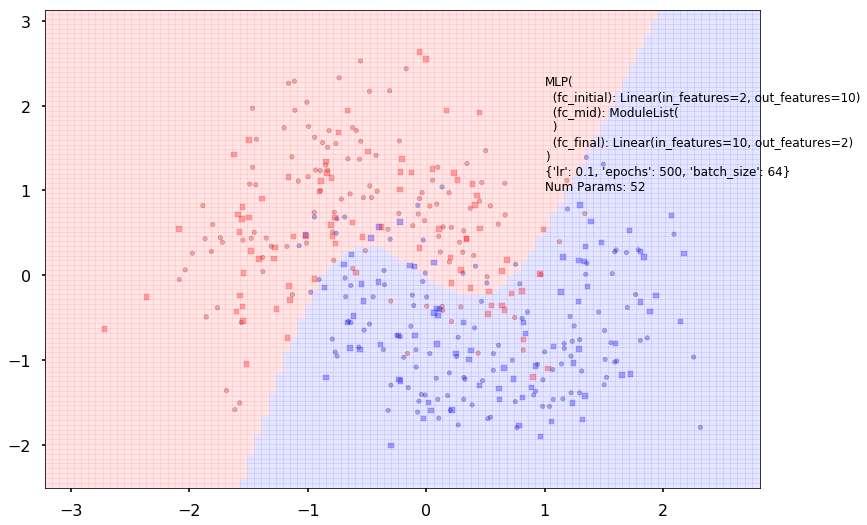

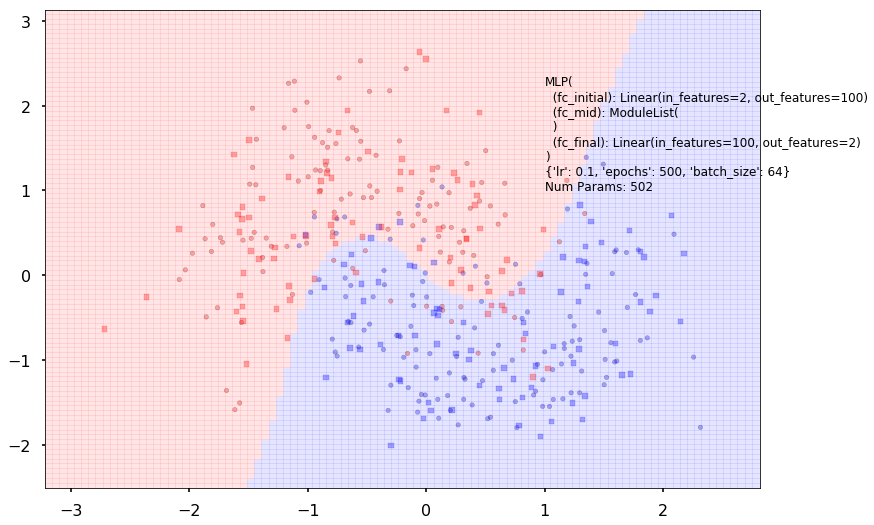

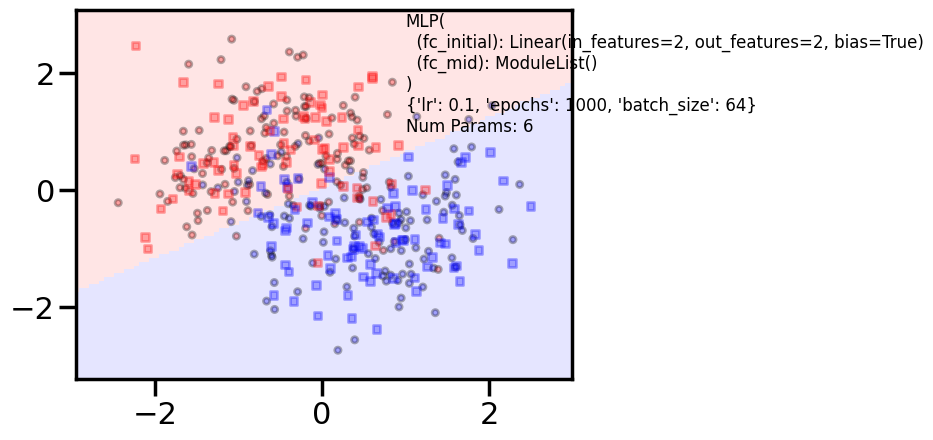

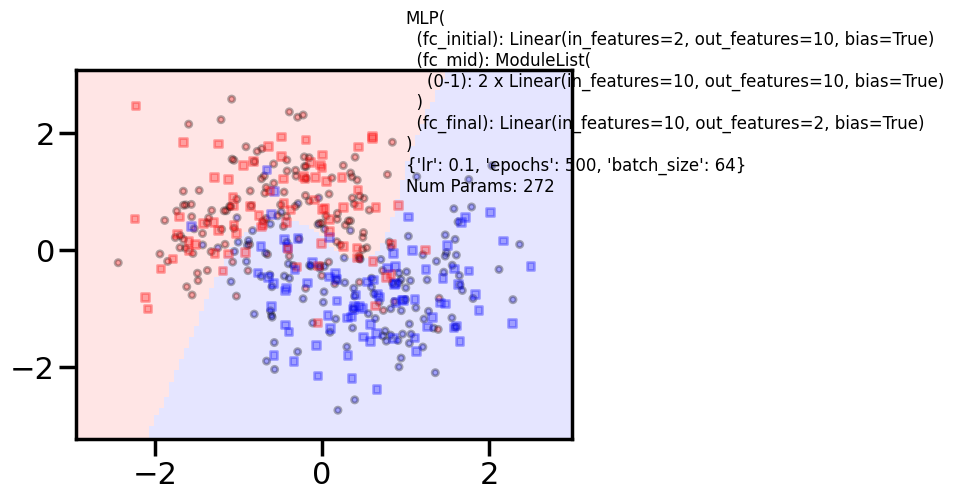

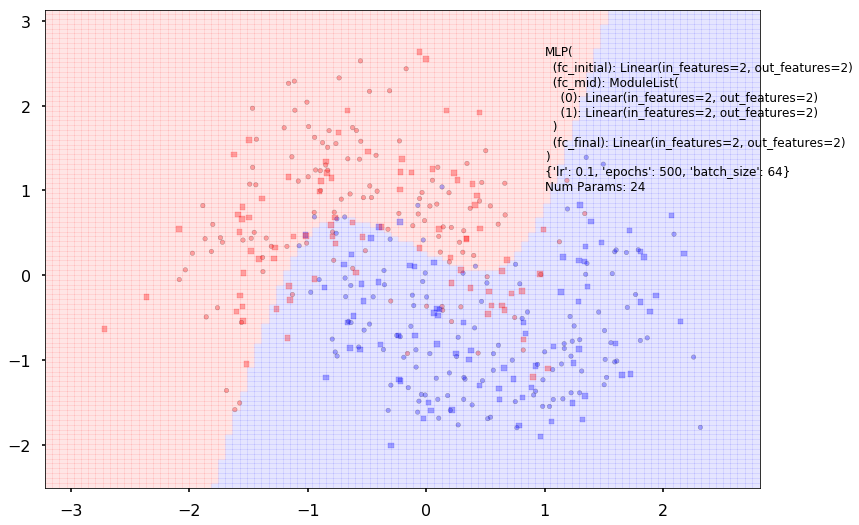

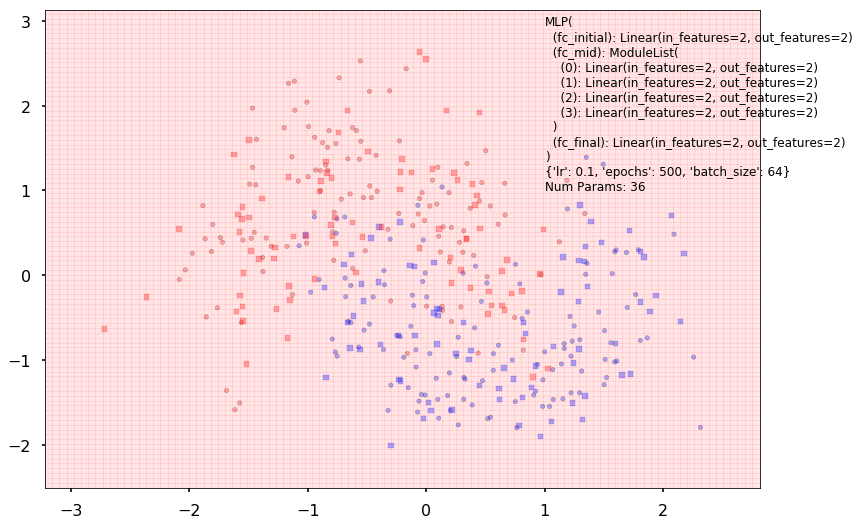

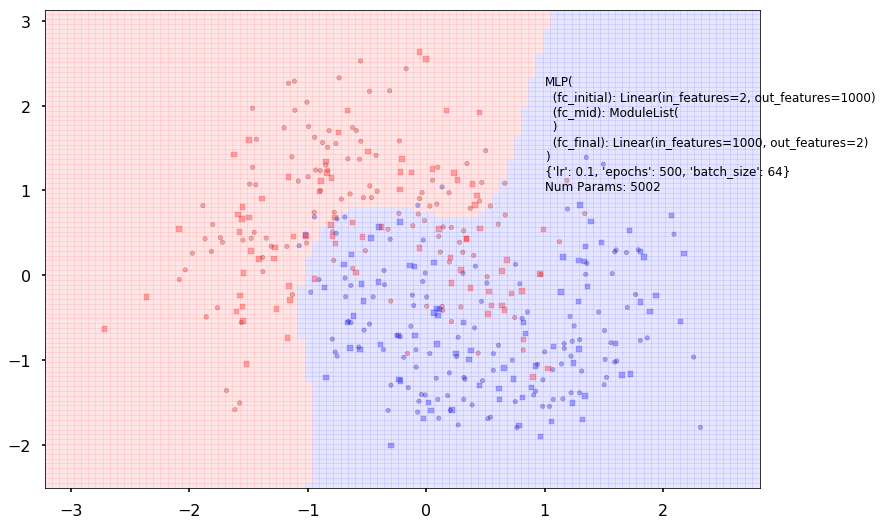

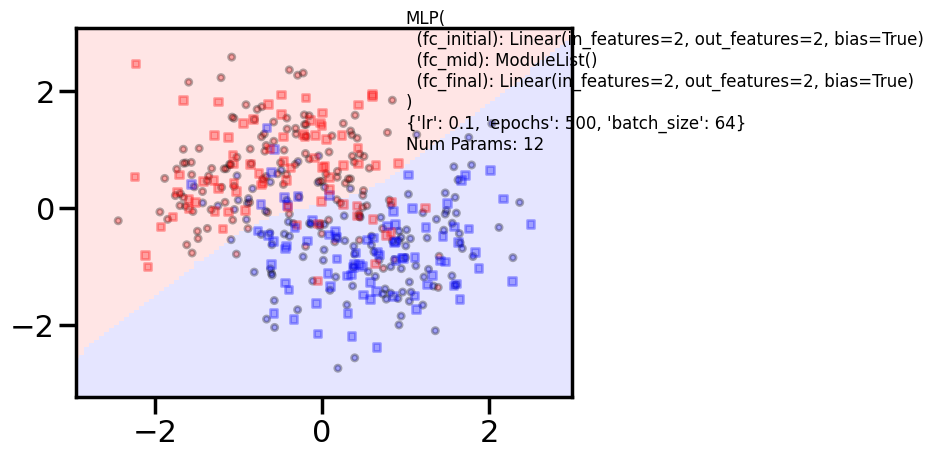

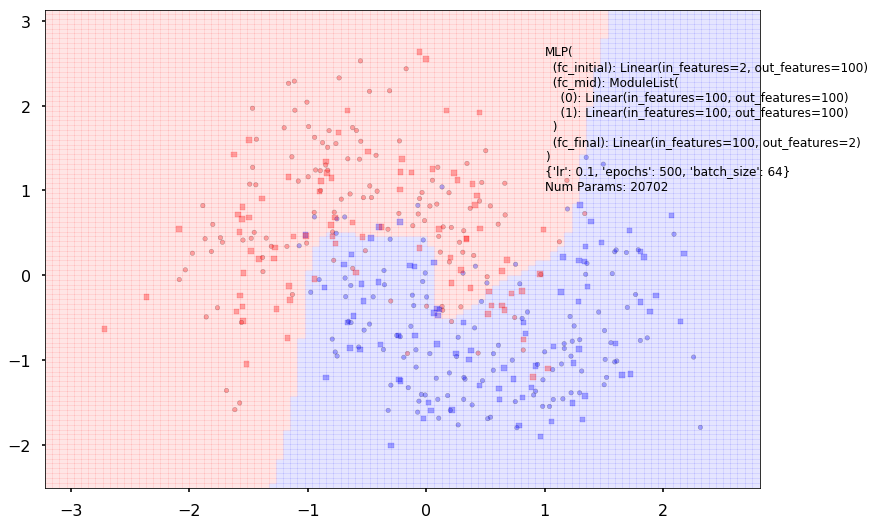

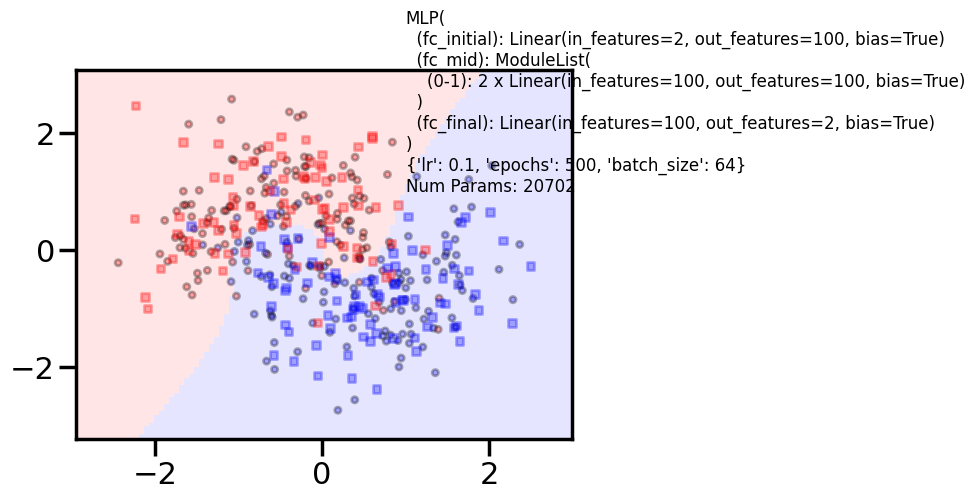

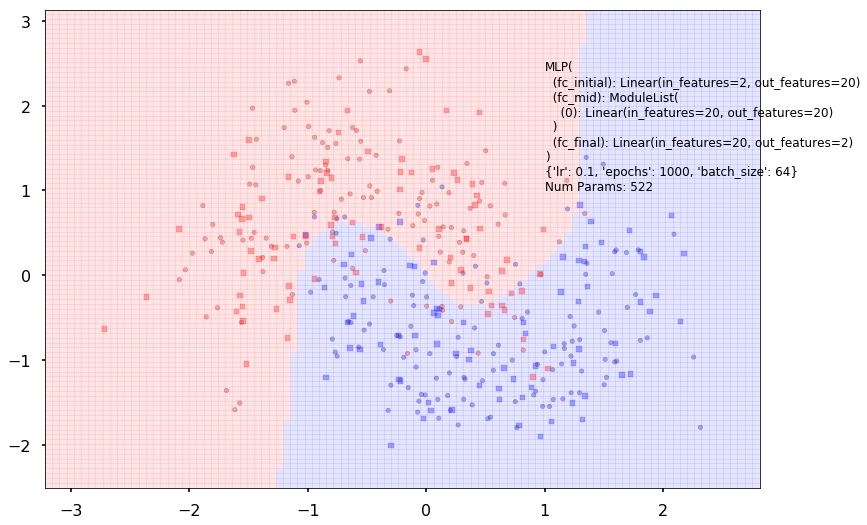

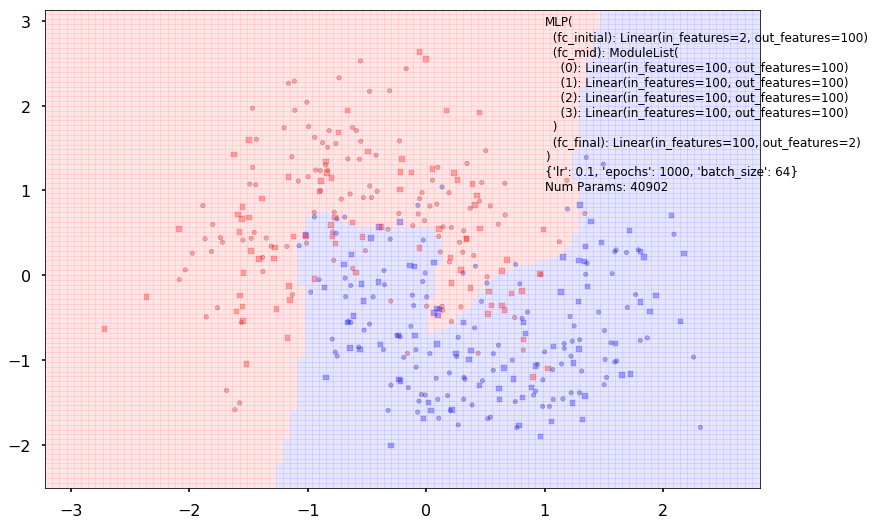

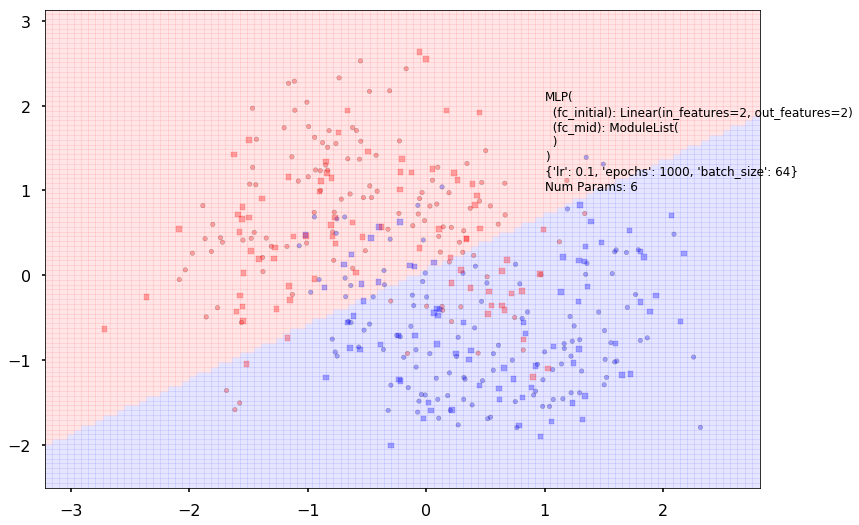

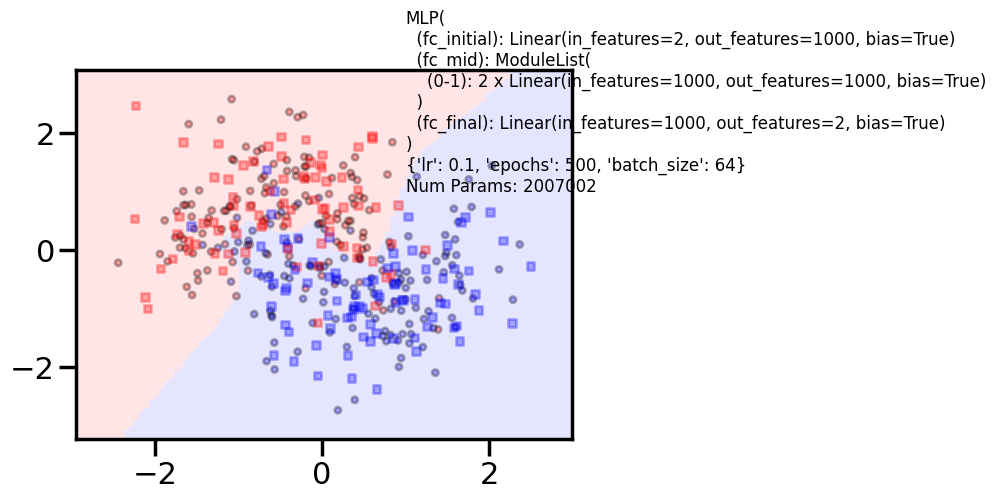

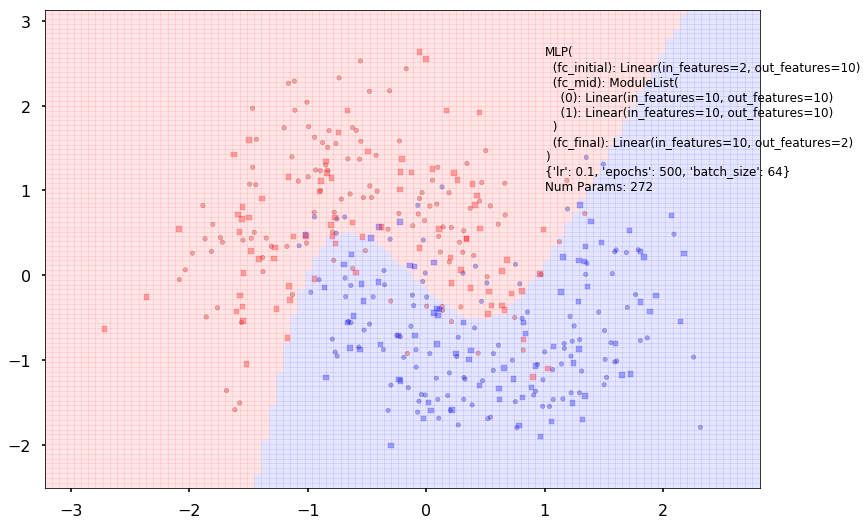

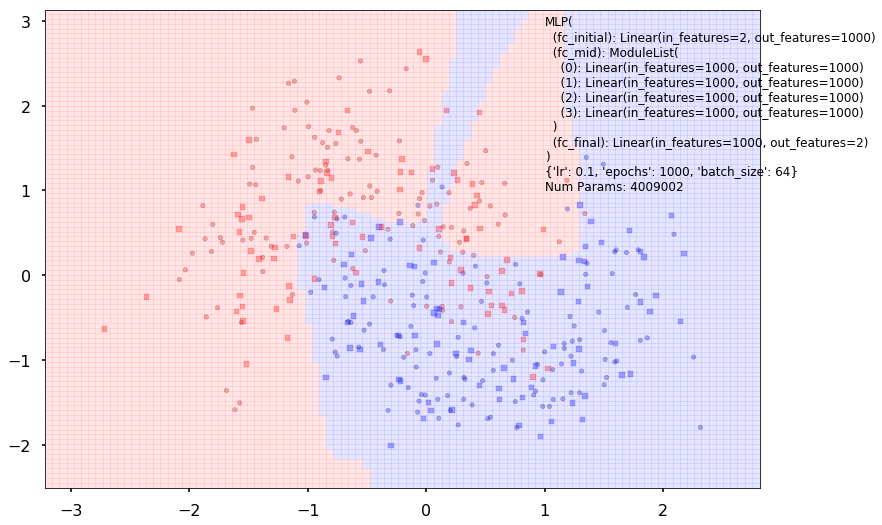

    def plot_boundary(self, X_train, X_test, y_train, y_test):
        points_plot(plt.gca(), X_train, X_test, y_train, y_test, self.predict);
        plt.text(1, 1, "{}".format(self), fontsize=12)
        plt.show()

    def predict(self, X_test):
        output = self._pytorch_model.forward(Variable(torch.from_numpy(X_test).float()))
        return output.data.numpy().argmax(axis=1)

Some points about this:

  • we provide the ability to change the fitting parameters
  • by implementing a __repr__ we let an instance of this class print something useful. Specifically we created a count of the number of parameters so that we can get a comparison of data size to parameter size.

The simplest model, and a more complex model

logistic = MLPClassifier(input_dim=2, hidden_dim=2, output_dim=2, nonlinearity=lambda x: x, additional_hidden_wide=-1)
logistic.set_fit_params(epochs=1000)
print(logistic)
logistic.fit(X_train,y_train)
MLP(
  (fc_initial): Linear(in_features=2, out_features=2)
  (fc_mid): ModuleList(
  )
)
{'lr': 0.1, 'epochs': 1000, 'batch_size': 64}
Num Params: 6
with sns.plotting_context('poster'):
    logistic.plot_loss()

ypred = logistic.predict(X_test)
#training and test accuracy
accuracy_score(y_train, logistic.predict(X_train)), accuracy_score(y_test, ypred)
(0.84583333333333333, 0.80625000000000002)
with sns.plotting_context('poster'):
    logistic.plot_boundary(X_train, X_test, y_train, y_test)

clf = MLPClassifier(input_dim=2, hidden_dim=20, output_dim=2, nonlinearity=fn.tanh, additional_hidden_wide=1)
clf.set_fit_params(epochs=1000)
print(clf)
clf.fit(X_train,y_train)
MLP(
  (fc_initial): Linear(in_features=2, out_features=20)
  (fc_mid): ModuleList(
    (0): Linear(in_features=20, out_features=20)
  )
  (fc_final): Linear(in_features=20, out_features=2)
)
{'lr': 0.1, 'epochs': 1000, 'batch_size': 64}
Num Params: 522
with sns.plotting_context('poster'):
    clf.plot_loss()

ypred = clf.predict(X_test)
#training and test accuracy
accuracy_score(y_train, clf.predict(X_train)), accuracy_score(y_test, ypred)
(0.875, 0.875)
with sns.plotting_context('poster'):
    clf.plot_boundary(X_train, X_test, y_train, y_test)

Experimentation Space

Here is space for you to play. You might want to collect accuracies on the traing and test set and plot on a grid of these parameters or some other visualization. Notice how you might want to adjust number of epochs for convergence.

for additional in [0, 2, 4]:
    for hdim in [2, 10, 100, 1000]:
        print('====================')
        print('Additional', additional, "hidden", hdim)
        clf = MLPClassifier(input_dim=2, hidden_dim=hdim, output_dim=2, nonlinearity=fn.tanh, additional_hidden_wide=additional)
        if additional > 2 and hdim > 50:
            clf.set_fit_params(epochs=1000)
        else:
            clf.set_fit_params(epochs=500)
        print(clf)
        clf.fit(X_train,y_train)
        with sns.plotting_context('poster'):
            clf.plot_loss()
            clf.plot_boundary(X_train, X_test, y_train, y_test)
        print("Train acc", accuracy_score(y_train, clf.predict(X_train)))
        print("Test acc", accuracy_score(y_test, clf.predict(X_test)))
====================
Additional 0 hidden 2
MLP(
  (fc_initial): Linear(in_features=2, out_features=2)
  (fc_mid): ModuleList(
  )
  (fc_final): Linear(in_features=2, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 12

Train acc 0.866666666667
Test acc 0.8375
====================
Additional 0 hidden 10
MLP(
  (fc_initial): Linear(in_features=2, out_features=10)
  (fc_mid): ModuleList(
  )
  (fc_final): Linear(in_features=10, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 52

Train acc 0.870833333333
Test acc 0.88125
====================
Additional 0 hidden 100
MLP(
  (fc_initial): Linear(in_features=2, out_features=100)
  (fc_mid): ModuleList(
  )
  (fc_final): Linear(in_features=100, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 502

Train acc 0.870833333333
Test acc 0.8875
====================
Additional 0 hidden 1000
MLP(
  (fc_initial): Linear(in_features=2, out_features=1000)
  (fc_mid): ModuleList(
  )
  (fc_final): Linear(in_features=1000, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 5002

Train acc 0.833333333333
Test acc 0.8
====================
Additional 2 hidden 2
MLP(
  (fc_initial): Linear(in_features=2, out_features=2)
  (fc_mid): ModuleList(
    (0): Linear(in_features=2, out_features=2)
    (1): Linear(in_features=2, out_features=2)
  )
  (fc_final): Linear(in_features=2, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 24

Train acc 0.875
Test acc 0.825
====================
Additional 2 hidden 10
MLP(
  (fc_initial): Linear(in_features=2, out_features=10)
  (fc_mid): ModuleList(
    (0): Linear(in_features=10, out_features=10)
    (1): Linear(in_features=10, out_features=10)
  )
  (fc_final): Linear(in_features=10, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 272

Train acc 0.8625
Test acc 0.90625
====================
Additional 2 hidden 100
MLP(
  (fc_initial): Linear(in_features=2, out_features=100)
  (fc_mid): ModuleList(
    (0): Linear(in_features=100, out_features=100)
    (1): Linear(in_features=100, out_features=100)
  )
  (fc_final): Linear(in_features=100, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 20702

Train acc 0.891666666667
Test acc 0.85
====================
Additional 2 hidden 1000
MLP(
  (fc_initial): Linear(in_features=2, out_features=1000)
  (fc_mid): ModuleList(
    (0): Linear(in_features=1000, out_features=1000)
    (1): Linear(in_features=1000, out_features=1000)
  )
  (fc_final): Linear(in_features=1000, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 2007002

Train acc 0.8375
Test acc 0.8125
====================
Additional 4 hidden 2
MLP(
  (fc_initial): Linear(in_features=2, out_features=2)
  (fc_mid): ModuleList(
    (0): Linear(in_features=2, out_features=2)
    (1): Linear(in_features=2, out_features=2)
    (2): Linear(in_features=2, out_features=2)
    (3): Linear(in_features=2, out_features=2)
  )
  (fc_final): Linear(in_features=2, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 36

Train acc 0.508333333333
Test acc 0.4875
====================
Additional 4 hidden 10
MLP(
  (fc_initial): Linear(in_features=2, out_features=10)
  (fc_mid): ModuleList(
    (0): Linear(in_features=10, out_features=10)
    (1): Linear(in_features=10, out_features=10)
    (2): Linear(in_features=10, out_features=10)
    (3): Linear(in_features=10, out_features=10)
  )
  (fc_final): Linear(in_features=10, out_features=2)
)
{'lr': 0.1, 'epochs': 500, 'batch_size': 64}
Num Params: 492

Train acc 0.8625
Test acc 0.85
====================
Additional 4 hidden 100
MLP(
  (fc_initial): Linear(in_features=2, out_features=100)
  (fc_mid): ModuleList(
    (0): Linear(in_features=100, out_features=100)
    (1): Linear(in_features=100, out_features=100)
    (2): Linear(in_features=100, out_features=100)
    (3): Linear(in_features=100, out_features=100)
  )
  (fc_final): Linear(in_features=100, out_features=2)
)
{'lr': 0.1, 'epochs': 1000, 'batch_size': 64}
Num Params: 40902

Train acc 0.916666666667
Test acc 0.84375
====================
Additional 4 hidden 1000
MLP(
  (fc_initial): Linear(in_features=2, out_features=1000)
  (fc_mid): ModuleList(
    (0): Linear(in_features=1000, out_features=1000)
    (1): Linear(in_features=1000, out_features=1000)
    (2): Linear(in_features=1000, out_features=1000)
    (3): Linear(in_features=1000, out_features=1000)
  )
  (fc_final): Linear(in_features=1000, out_features=2)
)
{'lr': 0.1, 'epochs': 1000, 'batch_size': 64}
Num Params: 4009002

Train acc 0.866666666667
Test acc 0.80625
