Metropolis and Support Mismatch

Why combining rejection with Metropolis sampling wastes efficiency.

Demonstrates the efficiency loss when combining rejection sampling with Metropolis by using a proposal distribution with larger support than the target. Shows that a significant fraction of acceptances are wasted on out-of-support proposals.

Wrongly combining rejection with sampling

From https://darrenjw.wordpress.com/2012/06/04/metropolis-hastings-mcmc-when-the-proposal-and-target-have-differing-support/

%matplotlib inline
import numpy as np
import scipy as  sp
import matplotlib as mpl
import matplotlib.cm as cm
import matplotlib.pyplot as plt
import pandas as pd
pd.set_option('display.width', 500)
pd.set_option('display.max_columns', 100)
pd.set_option('display.notebook_repr_html', True)
import seaborn.apionly as sns
sns.set_style("whitegrid")

As a simple example, lets target Gamma(2,1) or \(xe^{-x}, x \gt 0\).

target = lambda x: x*np.exp(-x)
xx = np.linspace(0, 20, 1000)
plt.plot(xx, target(xx));

Using Metropolis to sample

Here, copied from before, is the metropolis code.

def metropolis(p, qdraw, nsamp, xinit):
    samples=np.empty(nsamp)
    x_prev = xinit
    for i in range(nsamp):
        x_star = qdraw(x_prev)
        p_star = p(x_star)
        p_prev = p(x_prev)
        pdfratio = p_star/p_prev
        if np.random.uniform() < min(1, pdfratio):
            samples[i] = x_star
            x_prev = x_star
        else:#we always get a sample
            samples[i]= x_prev

    return samples

def prop(x):
    return np.random.normal(x, 1.0)
out = metropolis(target, prop, 100000, 1.0)

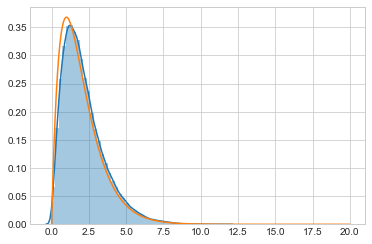

sns.distplot(out)
plt.plot(xx, target(xx));

Since we use the functional form directly without checking for \(x \gt 0\), we are not sampling on the correct support. This does not land up costing us, as the acceptance ratio being negative the first time we sample a negative \(x\) will ensure that we never sample a negative \(x\). We would be better using scipy.stats built in gamma support.

We have seen this before, in sampling from a weibull using a normal as well. Also from sampling from a function only defined on [0,1]. Some people consider the lax use of a larger-support proposal a bug. But it does not bite us anywhere but efficiency due to the mechanism of the acceptance ratio.

Let us see what this lack of efficiency is:

def metropolis_instrument(p, qdraw, nsamp, xinit):
    samples=np.empty(nsamp)
    x_prev = xinit
    acc1 = 0
    rej_neg = 0
    for i in range(nsamp):
        x_star = qdraw(x_prev)
        p_star = p(x_star)
        p_prev = p(x_prev)
        pdfratio = p_star/p_prev
        if np.random.uniform() < min(1, pdfratio):
            samples[i] = x_star
            x_prev = x_star
            acc1 += 1
        else:#we always get a sample
            if x_star < 0:
                rej_neg += 1
            samples[i]= x_prev

    return samples, acc1, rej_neg

out2, a1, rn = out = metropolis_instrument(target, prop, 100000, 1.0)

a1/100000, rn/(100000 - a1)

(0.7298, 0.3654700222057735)

Thus, out of a 73% acceptance, a full 36% is wasted on proposing negatives.

A wrong built-in regection sampler

You might think that simply rejecting is ok, but you would be wrong. You are then sampling from some other distribution.

def metropolis_broken(p, qdraw, nsamp, xinit):
    samples=np.empty(nsamp)
    x_prev = xinit
    for i in range(nsamp):
        while 1:
            x_star = qdraw(x_prev)
            if x_star > 0:
                break

        p_star = p(x_star)
        p_prev = p(x_prev)
        pdfratio = p_star/p_prev
        if np.random.uniform() < min(1, pdfratio):
            samples[i] = x_star
            x_prev = x_star
        else:#we always get a sample
            samples[i]= x_prev

    return samples

out3 = metropolis_broken(target, prop, 100000, 1.0)

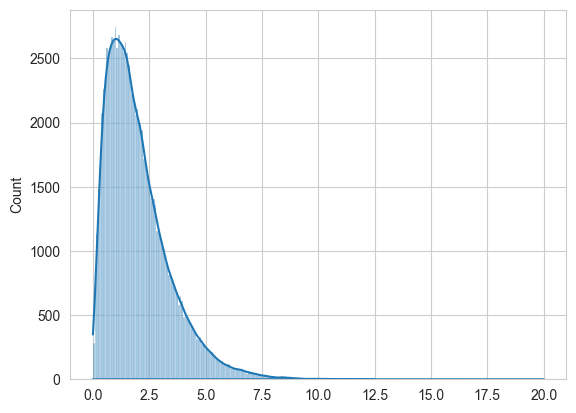

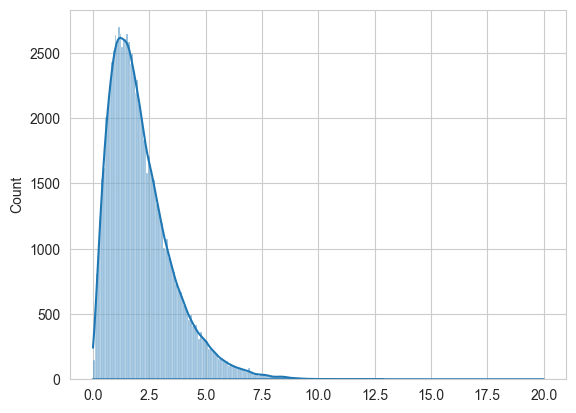

sns.distplot(out3)
plt.plot(xx, target(xx));

Fix using MH

To fix this use Metropolis-Hastings instead and sample from a distribution eith the correct support, a truncated normal. Since the truncated normal is not symmetric:

\[ \frac{e^{(x-x_0)^2}}{CDF(x)} != \frac{e^{(x_0-x)^2}}{CDF(x_0)} \]

we must use a MH Sampler

def metropolis_hastings(p,q, qdraw, nsamp, xinit):
    samples=np.empty(nsamp)
    x_prev = xinit
    accepted=0
    for i in range(nsamp):
        while 1:
            x_star = qdraw(x_prev)
            if x_star > 0:
                break

        p_star = p(x_star)
        p_prev = p(x_prev)
        pdfratio = p_star/p_prev
        proposalratio = q(x_prev, x_star)/q(x_star, x_prev)
        if np.random.uniform() < min(1, pdfratio*proposalratio):
            samples[i] = x_star
            x_prev = x_star
            accepted +=1
        else:#we always get a sample
            samples[i]= x_prev

    return samples, accepted

from scipy.stats import norm
def prop2(x):
    return x + np.random.normal()
def q(x_prev, x_star):
    num = norm.cdf(x_prev)
    return num

out4, _ = metropolis_hastings(target, q, prop2, 100000, 1.0)

Now we get the correct output!

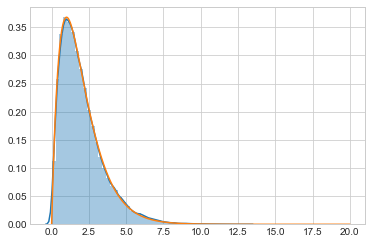

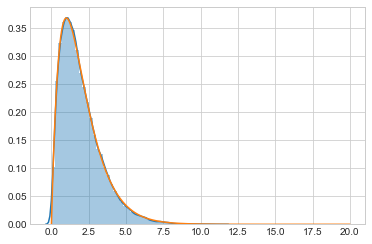

sns.distplot(out4)
plt.plot(xx, target(xx));
